R214c unable to attach the cutting deck after removal.

[Justas]

Has anyone faced a similar issue after trying to reattach the cutting deck on the Husqvarna rider? Had no problem removing the cutting desk, but now when trying to attach it, I'm unable to align the screw (nr 1 in the screenshot) and the metal pin (nr 2) on the left side. If I fit the pin, then I'm unable to align the scren and the other way around. What am I doing wrong?



[Rivets]

Try this manual’s procedure. https://www-static-nw.husqvarna.com...OM/M6U7UdtsCi0SZNm46McT4Mvh0us?httproute=True



[bertsmobile1]

I like to sit decks on some 2 x 4 which I use as rails to slide the deck in & out easily
When sitting on the 2x4's then it is easy to get pins and holes to match up
Usually it is lifting links first, then stabilizing links then front drag links



[Justas]

I seem to be doing this, but now I am at a point where I'm thinking whether the frame is maybe bent? there is a slightly curve, though I am not sure if that is expected or not.

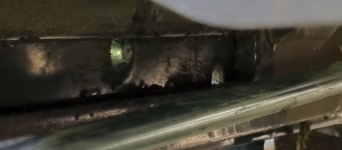

This is what I get when I try to connect it. If I try to lift the from for bolt hole to match, then the 2/3 blocks it (If my thinking is correct)

This is pretty much closest, I get, but it is not aligning any more



[bertsmobile1]

Stop for a second and have a little think about it
Did it come off easily ?
If so then it has to go back on easy



[powermax]

Is the belt on and tight?



[DaveTN]

I just had that problem a short while ago. A customer's ScrubCadet about 9 years
old dropped the deck anchor U bolt out of its hole and it was scalping the yard. All
I did was loosen the front deck that tightens and raises the deck. Once I got the
pin in the hole everything worked fine. Hope this helps.



[Justas]

Never mind me, looks like I just had a brain fart for a couple of days. Rewatching tutorial videos, the locking pin does not have to be in place when mounted, it is only used for service position if I understand correctly
Thank you four answers!
