Voltage Regulator on my Briggs & Stratton Intek 18.5 volt engine.

[Fixer9006]

I can't find the Voltage Regulator on my Briggs & Stratton Intek 18.5 volt engine. It has to be there somewhere. I downloaded the diagrams but it doesn't show where it's located. Any ideas?



[Rivets]

Depending on the engine model it not have one, but simply use a diode rectified system. Use this manual to identify which system you have. If you can’t, post back with the engine model, type and code numbers for some more help. https://www.briggsandstratton.com/c...a/en_us/Files/FAQs/alternator_replacement.pdf



[Fixer9006]

The engine model number is 33R777



[StarTech]

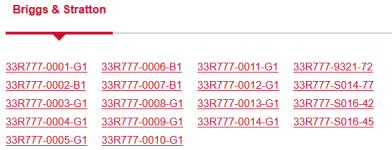

Which one of these...


The four I look at all used the dual stator without a voltage regulator.
