Repairs Husqvarna 125L Starter Repair, need some help please :(

[Widget]

Hey Guys,

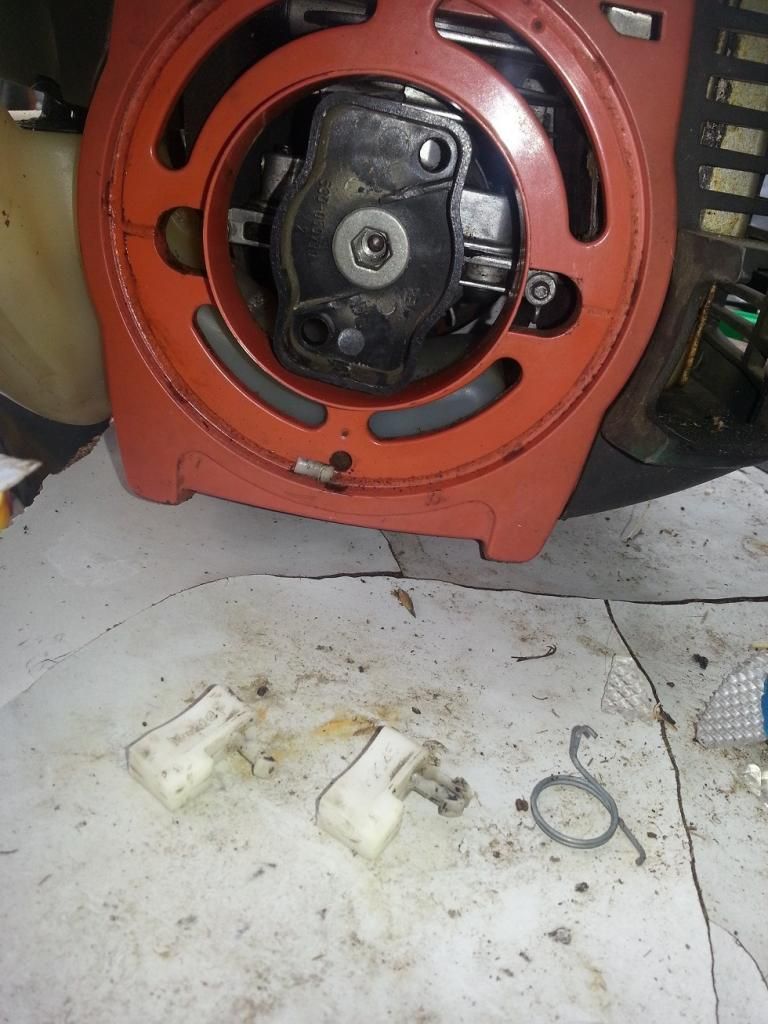

I have a Husqvarna 125L line trimmer (aka weed wacker, whipper snipper etc..) that I was trying to repair (starting issues) though as I was pull starting it, the starter assembly 9with the pull cord) popped off due to a broken screw. As a result, the Starter Cup Assembly came apart, but I'm not sure how to put it back together, I can't seem to find a diagram & am not sure of what pieces are required. Is anyone familiar with this part/trimmer or anyone have an idea how to get it back together?

Purchasing a new one isn't really an option as the cost I can probably buy a used working trimmer, I might only really be just after the white clips that connect into it (maybe.



Hope you guys can help

Thanks,



[ILENGINE]

Try this diagram

http://cdn.husqvarna.com/ddoc/HUSI/HUSI2008_AAaa/HUSI2008_AAaa__5450143-15.pdf

it is item 14 on about page 3 or so. Looks like you have to get the whole stater cup.

supercedes to 545180844 $19.04



[Widget]

Thanks Ilengine

I think I have all the pieces, just a matter of putting back together, though not sure how the springs install :/
